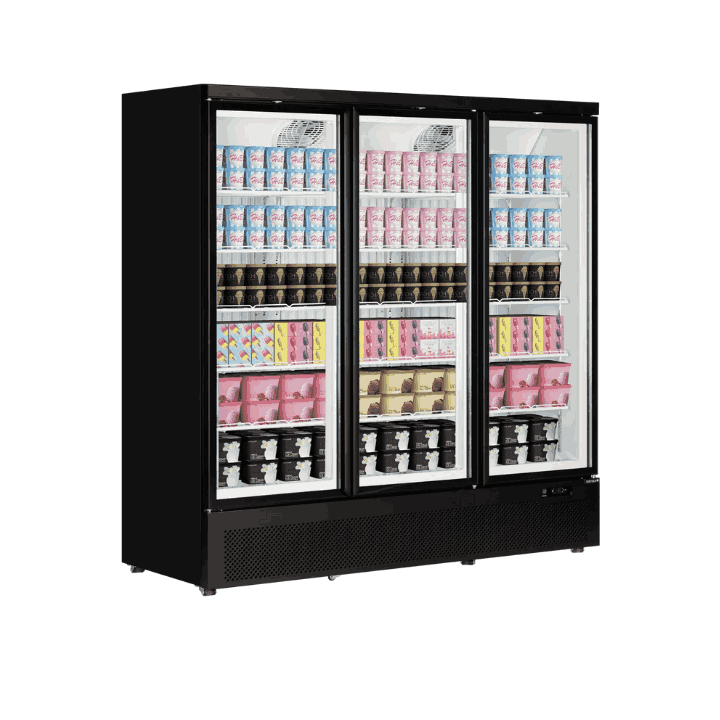

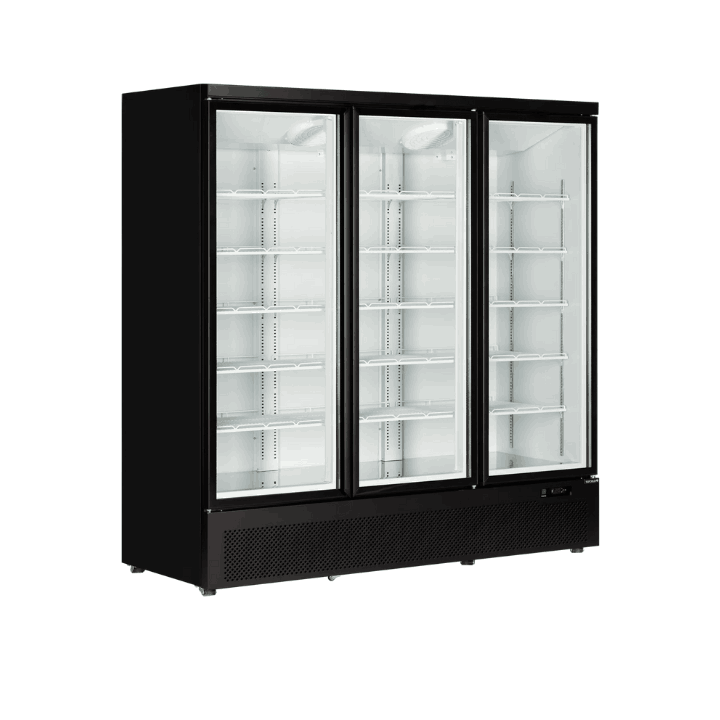

Atom Maxi F3DB
- Perfect display for frozen foods
- Low energy consumption
- Hinged glass doors
- Heated glass to help prevent condensation
- Triple glazed insulated glass
- Self-closing doors
- Adjustable shelves
- Vertical LED interior light with switch
- Ventilated cooling

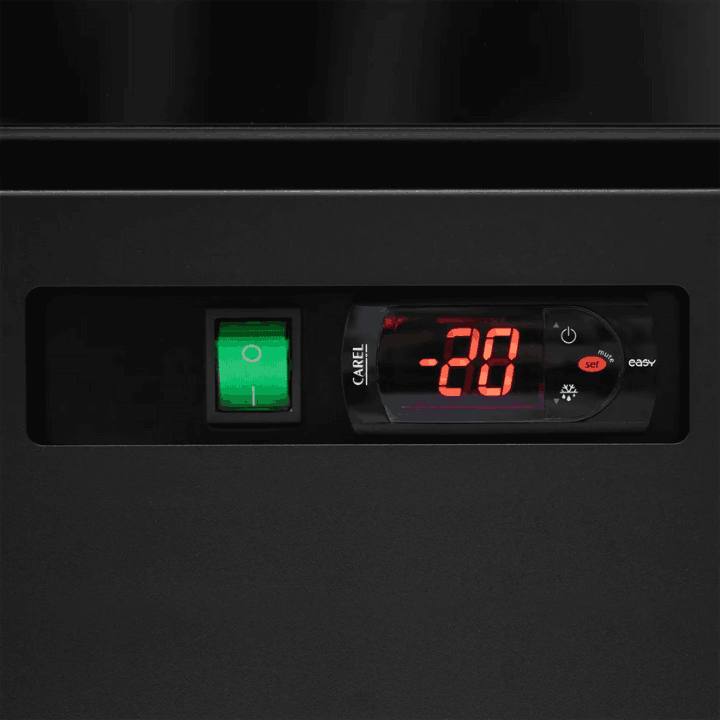

- Digital controller and temperature display
- Castors
- Chiller Option Available
The Atom Maxi range of glass door freezers is available in 2 or 3 door options. Edge to edge “frameless” self-closing glass doors together with excellent storage capacity make it ideal for all types of frozen food display. The canopy-less design makes it a favourite choice for shopfitters for use in convenience stores, delis and butchers where a frozen selection gives customers extra choice. A fully automatic refrigeration system ensures the unit will not ice-up under normal conditions, while vertical LED lighting on the interior help present the produce to customers in the best light. The Atom Maxi provides a competitively priced solution to introduce frozen food to your customers. There is also a matching chiller option available and the unit is often used alongside the Galaxy+ multideck.
Technical specifications
Measures and Content
- Temperature Range
-18 to -22 °C
- Climate Class
3
- Gross / Net Weight
355 / 305 kg
- Gross / Net Volume
1563 / 1090 l
- Total Display Area
2.09 m²
Design and Material
- Castors
6 castors
- Exterior Finish
Black RAL9005
- Interior Finish
White
- Interior Light
LED
- Door Number & Type
3 hinged glass doors
- Door Reversible
No
- Shelves Number & Type
15 adjustable
- Shelf Color
White
- Shelf Dimensions
551 x 470 mm ; 624 x 470 mm
- Max load on Shelves
140 kg/m²
Cooling and Functions
- Type of Controller
Electronic
- Type of Cooling
Ventilated
- Type of Defrost
Automatic
- Refrigerant
R290
- Refrigerant Charge
2 x 95 g
- Thermometer
Power and Consumption
- Energy Class
D
- Energy Consumption
23.84 kWh/24h
- Annual Energy Consumption
8702 kWh/year
- Input Power
1280 W
- Voltage / Frequency
220-240/50 V/Hz
- Noise Level
70 dB(A)
Dimensions
- Internal Dimension (WxDxH)
1760 x 580 x 1538 mm
- External Dimension (WxDxH)
1880 x 760 x 2003 mm
- Packed Dimension (WxDxH)
1905 x 780 x 2090 mm
- 40ft Container Load
18 pcs
- GTIN / EAN
5708181733094
- Product Group – Delivery services
Group 4
