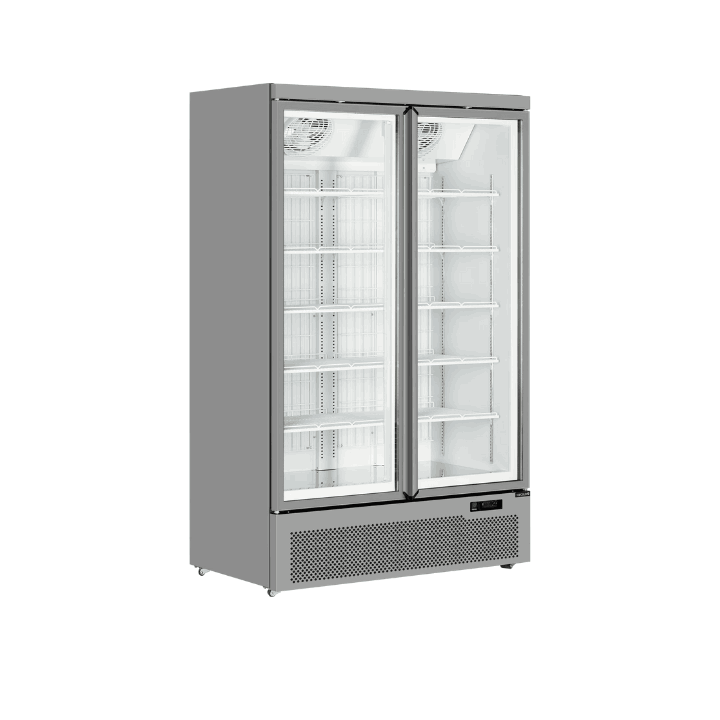

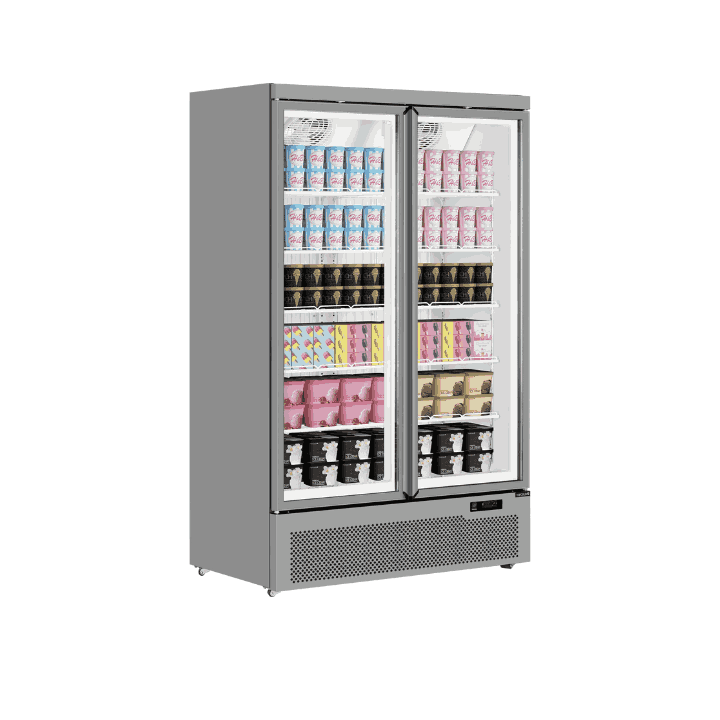

Atom Maxi F2DS

  • Perfect display for frozen foods
  • Low energy consumption
  • Hinged glass doors
  • Heated glass to help prevent condensation
  • Triple glazed insulated glass
  • Self-closing doors
  • Adjustable shelves
  • Vertical LED interior light with switch
  • Ventilated cooling
  • Digital controller and temperature display
  • Castors
  • Chiller Option Available
36 People watching this product now!
Description

The Atom Maxi range of glass door freezers is available in 2 or 3 door options. Edge to edge “frameless” self closing glass doors together with excellent storage capacity make it ideal for all types of frozen food display. The canopy-less design makes it a favourite choice for shopfitters who use it in convenience stores, delis and butchers where a frozen selection gives customers extra choice. A fully automatic refrigeration system ensures the unit will not ice up under normal conditions, while vertical LED lighting on the interior help present the produce to customers in the best light. The Atom Maxi provides a competitively priced solution to introduce frozen food to your customers. There is also a matching chiller option available and the unit is often used alongside the Galaxy+ multideck.

Technical specifications

Technical specifications

Measures and Content

  • Temperature Range
    -18 to -22 °C
  • Climate Class
    3
  • Gross / Net Weight
    270 / 240 kg
  • Gross / Net Volume
    1006 / 702 l
  • Total Display Area
    1.39 m²

Design and Material

  • Castors
    4 castors
  • Exterior Finish
    Silver RAL9006
  • Interior Finish
    White
  • Interior Light
    LED
  • Door Number & Type
    2 hinged glass doors
  • Door Reversible
    No
  • Shelves Number & Type
    10 adjustable
  • Shelf Color
    White
  • Shelf Dimensions
    551 x 470 mm
  • Max load on Shelves
    140 kg/m²

Cooling and Functions

  • Type of Controller
    Electronic
  • Type of Cooling
    Ventilated
  • Type of Defrost
    Automatic
  • Refrigerant
    R290
  • Refrigerant Charge
    2 x 80 g
  • Thermometer

Power and Consumption

  • Energy Class
    D
  • Energy Consumption
    17.47 kWh/24h
  • Annual Energy Consumption
    6377 kWh/year
  • Input Power
    1205 W
  • Voltage / Frequency
    220-240/50 V/Hz
  • Noise Level
    65 dB(A)

Dimensions

  • Internal Dimension (WxDxH)
    1133 x 580 x 1538 mm
  • External Dimension (WxDxH)
    1253 x 760 x 2003 mm
  • Packed Dimension (WxDxH)
    1278 x 780 x 2090 mm
  • 40ft Container Load
    27 pcs
  • GTIN / EAN
    5708181733421
  • Product Group – Delivery services
    Group 3
