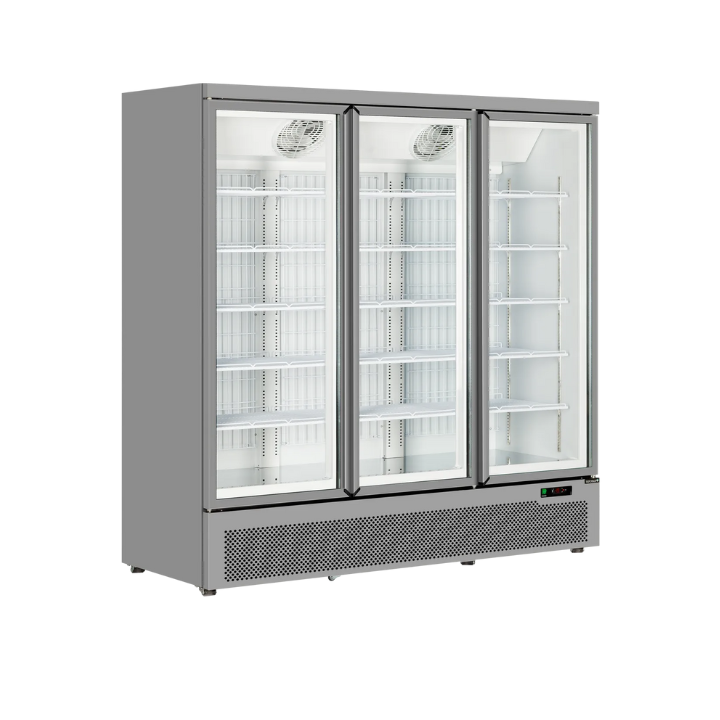

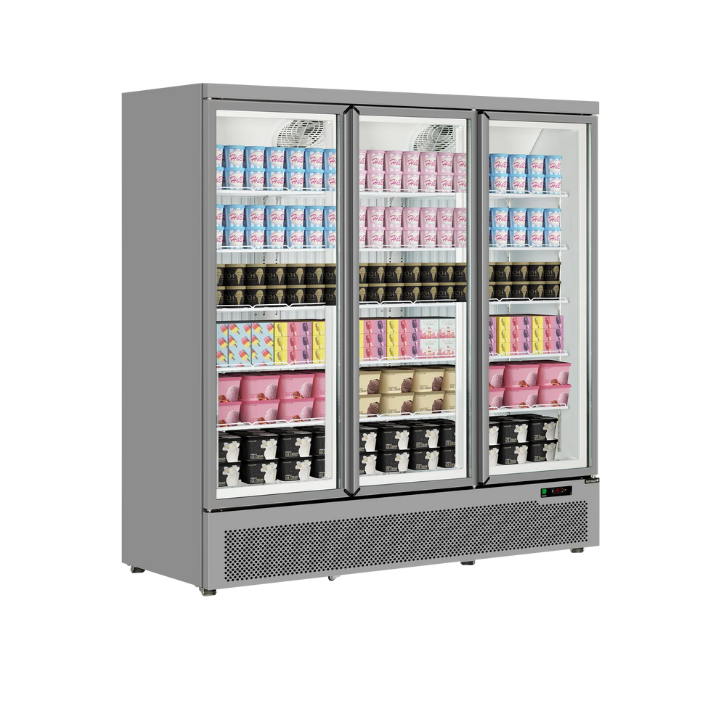

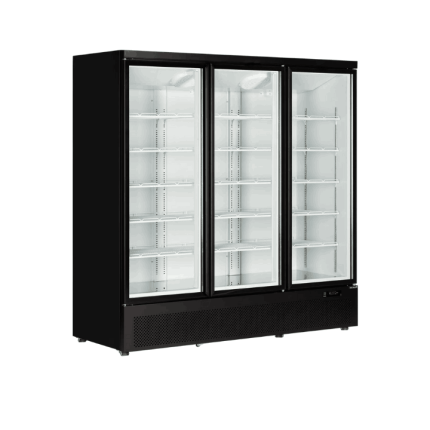

Atom Maxi F3DS
- Perfect display for frozen foods
- Low energy consumption
- Hinged glass doors
- Heated glass to help prevent condensation
- Triple glazed insulated glass
- Self-closing doors

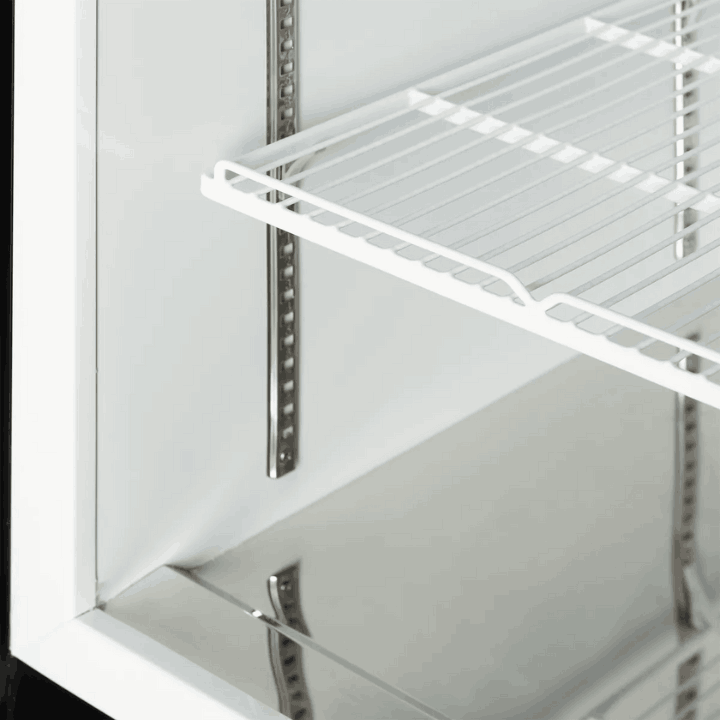

- Adjustable shelves
- Vertical LED interior light with switch

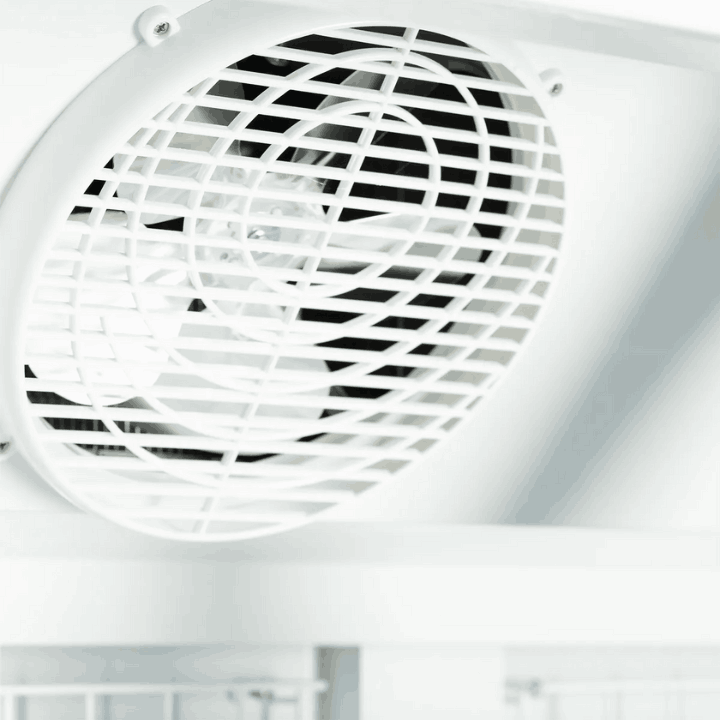

- Ventilated cooling
- Digital controller and temperature display
- Castors
- Chiller Option Available

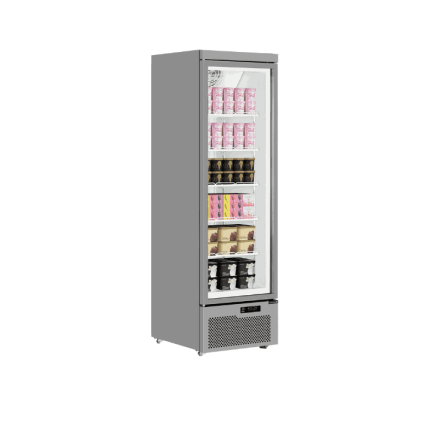

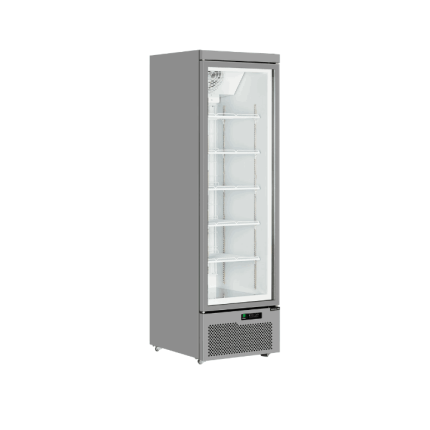

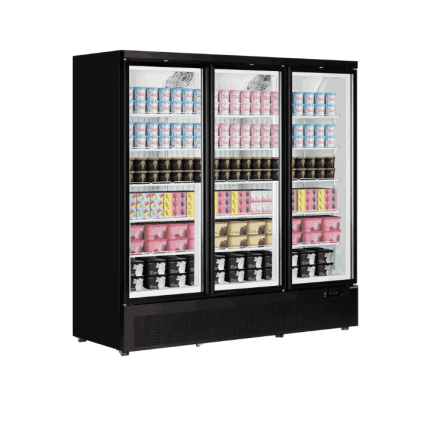

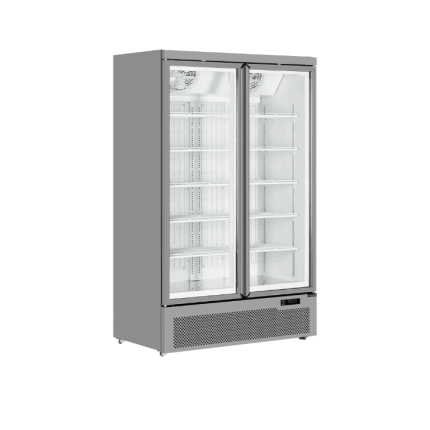

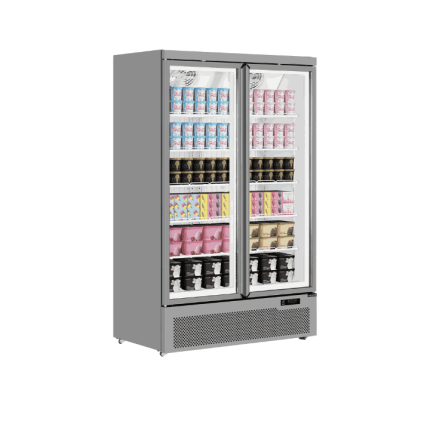

The Atom Maxi range of glass door freezers is available in 2 or 3 door options. Edge to edge “frameless” self closing glass doors together with excellent storage capacity make it ideal for all types of frozen food display. The canopy-less design makes it a favourite choice for shopfitters who use it in convenience stores, delis and butchers where a frozen selection gives customers extra choice. A fully automatic refrigeration system ensures the unit will not ice up under normal conditions, while vertical LED lighting on the interior help present the produce to customers in the best light. The Atom Maxi provides a competitively priced solution to introduce frozen food to your customers. There is also a matching chiller option available and the unit is often used alongside the Galaxy+ multideck.
Technical specifications
Measures and Content
- Temperature Range
-18 to -22 °C
- Climate Class
3
- Gross / Net Weight
355 / 305 kg
- Gross / Net Volume
1563 / 1090 l
- Total Display Area
2.09 m²
Design and Material
- Castors
6 castors
- Exterior Finish
Silver RAL9006
- Interior Finish
White
- Interior Light
LED
- Door Number & Type
3 hinged glass doors
- Door Reversible
No
- Shelves Number & Type
15 adjustable
- Shelf Color
White
- Shelf Dimensions
551 x 470 mm ; 624 x 470 mm
- Max load on Shelves
140 kg/m²
Cooling and Functions
- Type of Controller
Electronic
- Type of Cooling
Ventilated
- Type of Defrost
Automatic
- Refrigerant
R290
- Refrigerant Charge
2 x 95 g
- Thermometer
Power and Consumption
- Energy Class
D
- Energy Consumption
23.84 kWh/24h
- Annual Energy Consumption
8702 kWh/year
- Input Power
1280 W
- Voltage / Frequency
220-240/50 V/Hz
- Noise Level
70 dB(A)
Dimensions
- Internal Dimension (WxDxH)
1760 x 580 x 1538 mm
- External Dimension (WxDxH)
1880 x 760 x 2003 mm
- Packed Dimension (WxDxH)
1905 x 780 x 2090 mm
- 40ft Container Load
18 pcs
- GTIN / EAN
5708181733445
- Product Group – Delivery services
Group 4
